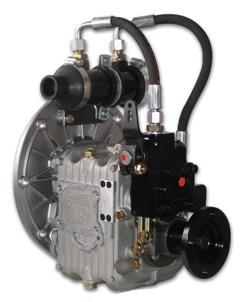

H80
Vertical Reduction Hydraulic Marine Gearbox
Maximum Power: 80 Hp (60 Kw)
Reverse reduction marine transmission with hydraulically actuated multi-disc clutches.
Suitable for high performance applications and pleasure duty conditions in fishing and tour boats.
Soft gear lever which provides controlling facility with spiral.
Fully works tested,reliable and simple to install.
In case of proper usage according to safety usage conditions, proper engine, shaft, propeller selection and errorless assembling occured has 2 years warranty.
Design and manufacturing activities of all BAYSAN’s products comply with ISO 9001:2008.
Technical Details
|
Maximum input power limit
|
Pleasure duty – 80 Hp (60Kw)
Heavy Duty – 64 Hp (47 Kw)
|
|
Maximum input rpm limit
|
4000 RPM.
|
|
Reduction ratio
|
Standard : forward 2,10:1, reverse 1,95:1 Optionel : forward 2,77:1
|
|
Oil type
|
SAE 20W50/75W90
|
|
Oil capacity
|
1,5 lt. +Plus reqired amount to fill the cooling unit.
|
|
Weight without flange
|
33 kg.
|
|
Standard rotation
|
In gear lever position (A),(Ref.dimensions) engine shaft and the propeller rotate in opposite directions,in position (B) in the same directions.
|

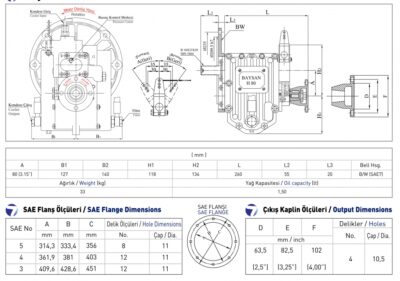

Dimensions

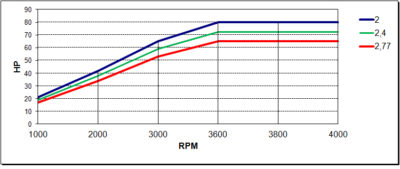

Pleasure Duty
| RATIOS | MAX. TORQUE | POWER | MAX. POWER | MAX. RPM | ||||||||
| (A) Pos. | (B) Pos. | Nm | Kw | Hp | Kw | Hp | Kw | Hp | Kw | Hp | ||
| 3000 rpm | 3600 rpm | 3800 rpm | ||||||||||
| 2 | 2,15 | 150 | 1,55 | 2,10 | 48 | 65 | 57 | 77 | 60 | 80 | 4000 | |
| 2,4 | 2,15 | 137 | 1,4 | 1,90 | 44 | 59 | 52 | 70 | 54 | 72 | 4000 | |
| 2,77 | 2,15 | 120 | 1,26 | 1,71 | 39 | 53 | 46 | 63 | 48 | 65 | 4000 | |
| Max. Input Power 60 kW | ||||||||||||

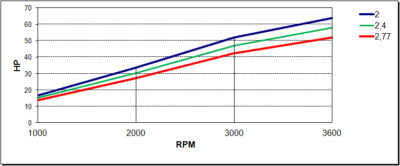

Heavy Duty
| RATIOS | MAX. TORQUE | POWER | MAX. POWER | MAX. RPM | ||||||||
| (A) Pos. | (B) Pos. | Nm | Kw | Hp | Kw | Hp | Kw | Hp | Kw | Hp | ||
| 3000 rpm | 3600 rpm | 3800 rpm | ||||||||||
| 2 | 2,15 | 120 | 1,24 | 1,68 | 39 | 52 | 45 | 61 | 47 | 64 | 3800 | |
| 2,4 | 2,15 | 110 | 1,13 | 1,52 | 35 | 47 | 41 | 55 | 42 | 57 | 3800 | |
| 2,77 | 2,15 | 97 | 1,01 | 1,37 | 31 | 42 | 37 | 50 | 39 | 52 | 3800 | |
| Max. Input Power 47 kW | ||||||||||||
Related products

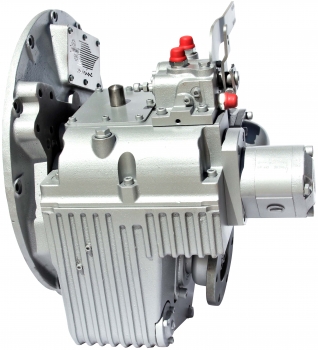

H250A
