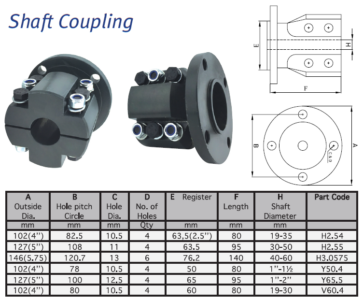

Shaft Couplings
Clamps to give a better fit than a solid coupling.
Produced by high quality steel.
Able to accommodate normal shaft tolerances.
Available in standard sizes (Both Metric and Imperial).
Easy to install and position.

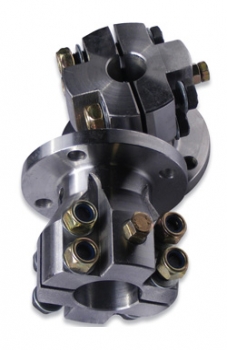

Baysan Marine has developed a comprehensive range of Steel Clamp Half Couplings with flange sizes from 4 to 6 inch diameter.
Steel Clamp Half Couplings can accommodate the variations that occur with normal shaft tolerances, are easy to install and can be adjusted to the required position on the shaft.
Capacity to machine Split Half Couplings to special sizes.
Related products
Shaft Flexible Coupling
Reduce engine noise, vibration transmission and are designed to accept propeller thrust.
For engines 5 to 120 HP.
Reduces engine noise and vibration transmission.
Safety design.
Simple to periodically check alignment .
Fast installation time.
Requires no machining, accepts propeller thrust.
The couplings are made from a polyester elastomer which is not affected by salt water, diesel and lubrication fluids. In the unlikely event of a disc failure, the steel straps make the coupling fail safe and ensure drive is maintained in both forward and reverse.
