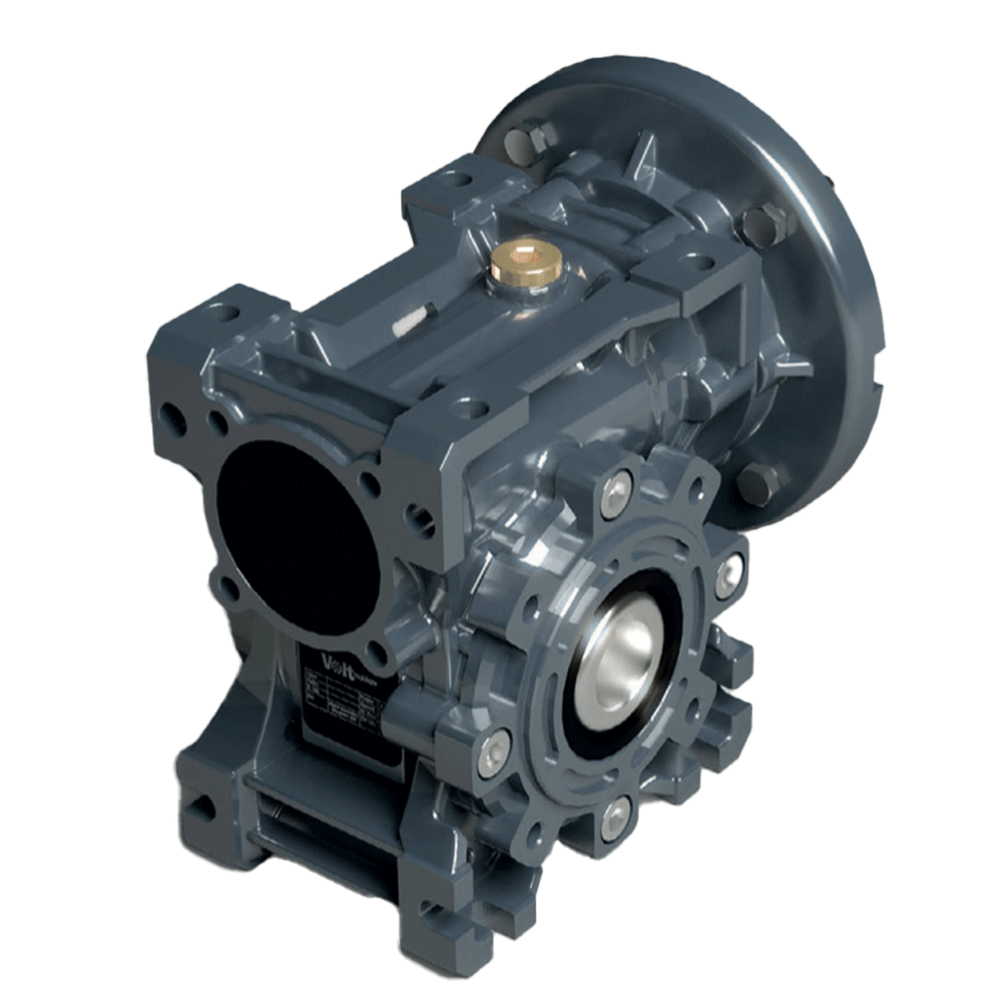

E Series
E series gearboxes are also called worm gearboxes. Volt offers solutions for many industries with its wide range of products from housing size 30 to housing size 130, the possibility of being mounted in all positions, and with monoblock housing design.
Specifications and Advantages
Specifications and Advantages
- 30-40-50-63-75-90-110-130 housing size options,
- Housing options without feet in 40-50-63 types,
- Gearbox composed of worm gear and bronze gear,
- Bronze alloy: 12% Tin 2% Nickel 86% Bronze
- Aluminum injection is used in housing sizes from ES30 to ES90,
- GG20 cast iron housing is used in housing sizes ES110 and ES130,
- Optional synthetic oil utilization in cast iron housings in which mineral oil is used,
- Different kinds of input options such as shaft at the PAM Location, Shaft with Blind Plug and Double-Sided Shaft,
- As output options; single-output shaft, double-sided output shaft, single-output flanged, double output flanged, torque arm connected options,
- Lower output speed possibility with coupled housings,
- Mono-block design,
- IEC B5 and B14 connection possibilities.
Application Fields
Application Fields
- Construction Machinery: – Concrete mixers – Heavy Load Elevators
- Paper Machinery: – Wet Presses – Paper Pulp Machines – Drying Cylinders – Burnishing Cylinders
- Rubber machinery: – Calender Machines – Mixers – Extruders – Rubber Dough Kneader – Cylinders
- Textile Machinery: – Printing and Dyeing Machines – Weaving Looms – Carding Machines – Blending Machines – Graining (Tanning) Troughs Oil Industry– Feed Pumps – Rotary
- Drilling Equipment
- Food Industry: – Box Knives – Box Coating – Fermentation troughs – Side Opening
- Laundry Machinery:Â – Rotary Dryers – Washing Machines
- Rolling Mill Machinery: – Speed Adjustable Cylinders – Stationary Cylinders – Winding Machines – Wire Pulling – Rod Cutting Machines – Rotary Tables (large) – Descaling
- Machines – Plate Rolling – Cylinder Rolling – Cold Rolling
