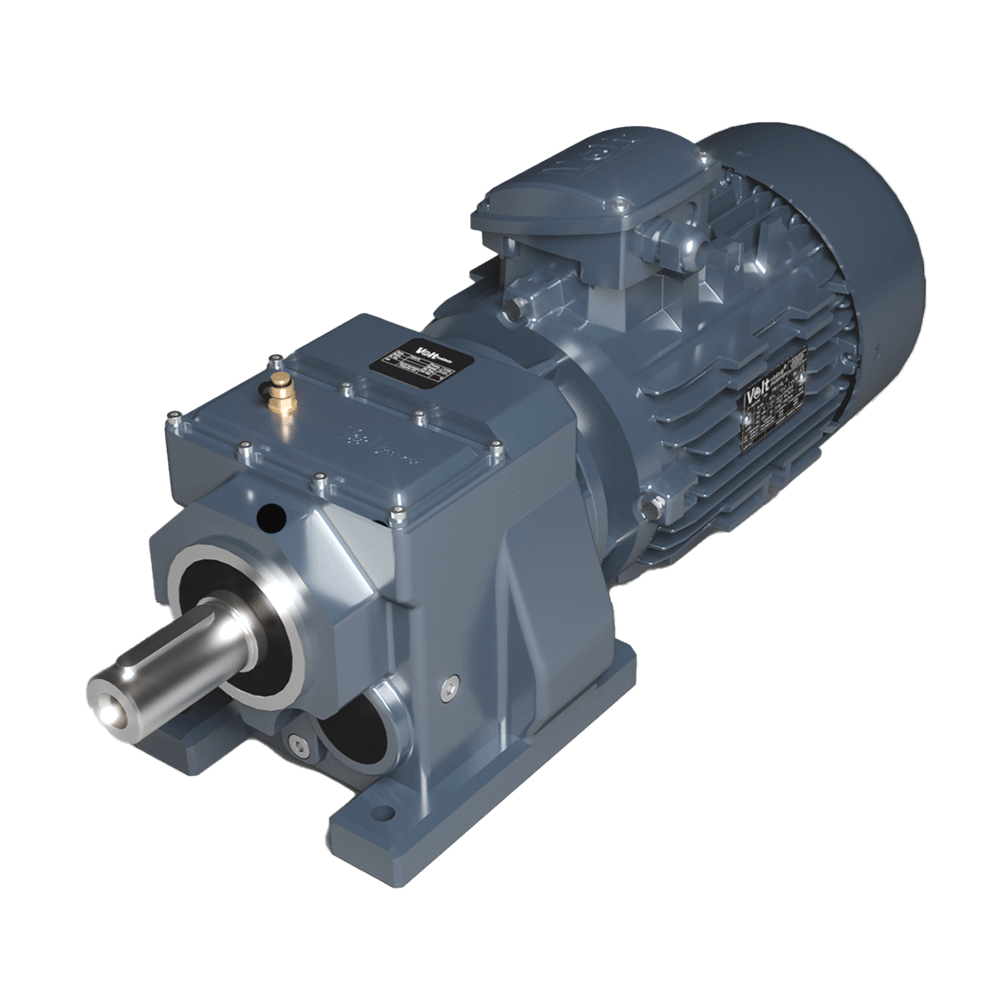

M Series
M Series gearboxes belong to the helical gearbox group. Volt offers a wide range of housing types, from type 00 up to type 800 in the M Series gearboxes with a monoblock housing design. Volt offers a cut-out flange option in the flanged options as per demand of the customer and provides solutions aimed at the need of the customer.
Specifications and Advantages
Specifications and Advantages
- It is a gearbox which belongs to the helical gearbox group.
- Housing types with MA foot connection, MF flange connection, both foot and also flanged MAF,
- M002 172 202 272 282 372 472 572 672 772 872 housing options,
- 2- and 3-stage gear design,
- The housing design is mono-block.
- Gear material is produced from 8620 case hardened steel.
- Output shaft material is produced from C1040 material.
- It has a GG20 gray cast iron mono-block design body from M 002 up to M 872.
- Flanged, footed and both flanged and also footed options are available.
- Cast iron processed housing (GG20) is performed.
- It is possible to go up to 5-6 stages at very low speeds with additional transfers.
- Three-phase and mono-phase motor connection options are possible.
- Mineral oil is used as standard, and synthetic oil is used optionally in temperatures of -30 and +60 degrees.
- In MA and MF housings, the connection position in the input and output is linear.
- In flanged options, a cut-out flange can be made as per the demand of the customer.
- IEC B5, IEC B14, and B9 (special) connection types are available.
Application Areas
Application Areas
- Mixing machines
- Washing machines and dryers
- Textile machines
- Ventilation apparatus
- Cranes
- Elevators
- Crushing machines
- Air compressors
- Extruders
- Feed machines
- Food industry machines
- Metal processing
- Rotary processing
- Paper processing
- Plastics industry
- Pumps
- Dumper trucks
- Towing vehicles
- Purification machines
- Compactors
- Rubber industry
- Stone and clay processing machines
- Rolling mill machines
- Chemical industry
