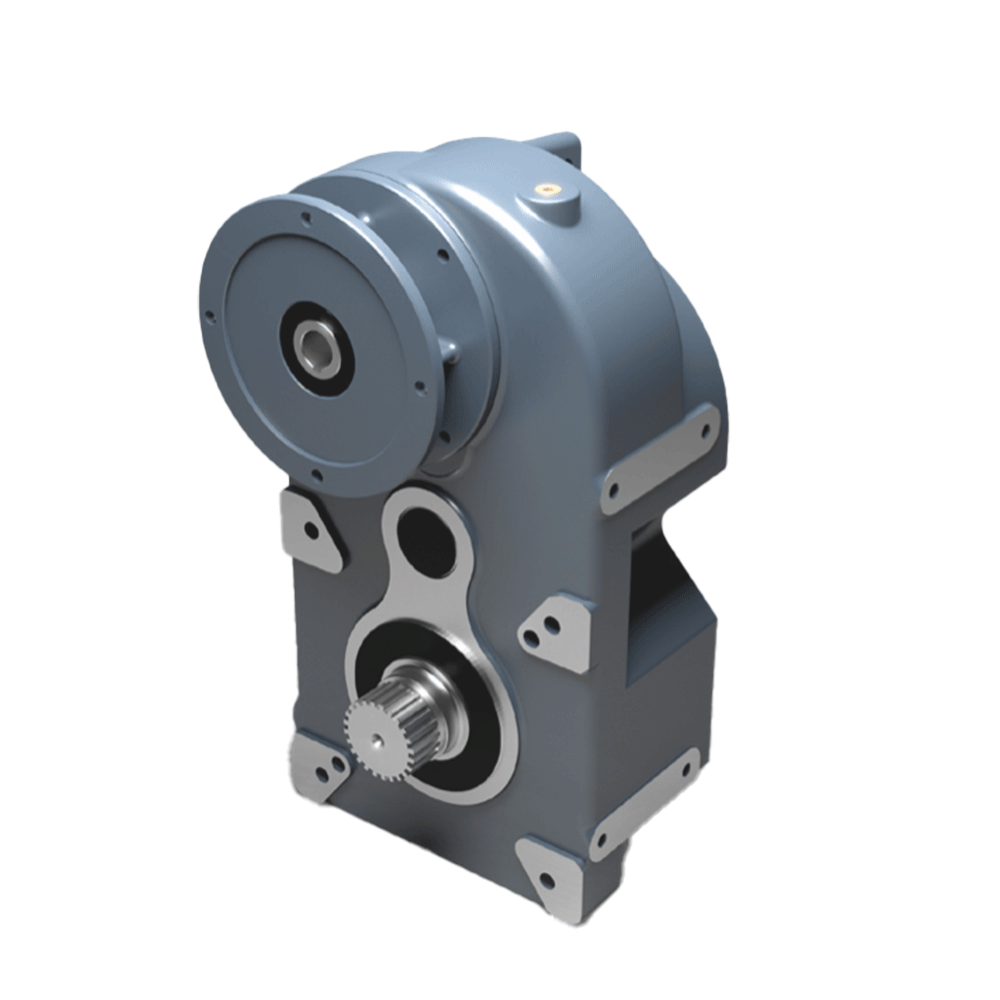

V Series
V Series are three stage crane drum gearboxes and habe a monoblock housing design. At the same time , they are also being defined as helical crane gearboxes. This gearbox has an utilization in double or single speed motors with brakes according to the request of the customer and provides solutions aimed at the need of the customer.
Specifications and Advantages
Specifications and Advantages
- 373-473-573-673-773-873 wide body options,
- Mono-block housing design,
- GG20 cast iron housing,
- Gear material produced from 8620 case hardened steel,
- Output shaft produced from C1040 material,
- Splined output shaft,
- Three-phase and mono-phase motor connection options,
- IEC B5, IEC B14, and B9 (special) connection types,
- Possibility to be used with double- or single-speed motors with brakes according to the demand of the customer,
- Drum connection flange availability,
- Special seal solutions,
- Transparent oil level indicator,
- Electromagnetic brakes with different features,
- Suitability to be used with a manual arm brake,
Application Areas
Application Areas
- Marine industry
- Construction industry
- Crane systems
- Mining
