M30C
Mechanical Marine Gearbox Vertical Reduction
Reverse reduction marine transmission with mechanically actuated claw clutch .
Suitable for high performance applications and pleasure duty conditions in fishing and tour boats.
Soft gear lever which provides controlling facility with spiral .
Fully works tested,reliable and simple to install. In case of proper usage according to safety usage conditions, proper engine, shaft, propeller selection and errorless assembling occured has 2 years warranty.
Design and manufacturing activities of all BAYSAN’s products comply with ISO 9001:2008..
Technical Details
|
Maximum input power limit
|
Pleasure duty – 22 Hp (16Kw)
Heavy Duty – 18 Hp (13Kw) |
|
Maximum input rpm limit
|
4000 RPM.
|
|
Reduction ratio
|
Standard : forward 1,80:1, reverse 1,90:1 Optionel : forward 2,5:1 – 1,5:1 -1,125:1
|
|
Oil type
|
SAE 80 W 90
|
|
Oil capacity
|
0,80 lt.
|
|
Weight without flange
|
17,4 kg.
|
|
Standard rotation
|
In gear lever position (A),(Ref.dimensions) engine shaft and the propeller rotate in opposite directions,in position (B) in the same directions.Â
|

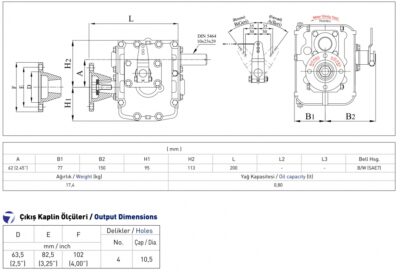

Dimensions

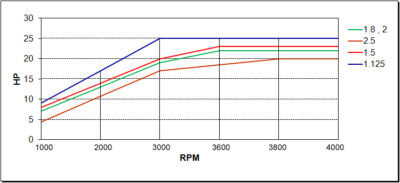

Pleasure Duty
| RATIOS | MAX. TORQUE | POWER | MAX. POWER | MAX. RPM | ||||||||
| (A) Pos. | (B) Pos. | Nm | Kw | Hp | Kw | Hp | Kw | Hp | Kw | Hp | ||
| 3000 rpm | 3600 rpm | 3800 rpm | ||||||||||
| 1,125/1 | 1,9 | 60 | 0,49 | 0,65 | 19 | 25 | 19 | 25 | 19 | 25 | 4000 | |
| 1,5/1 | 1,9 | 60 | 0,45 | 0,6 | 15 | 20 | 17 | 23 | 17 | 23 | 4000 | |
| 1,8/1, 2/1 | 1,9 | 55 | 0,43 | 0,58 | 14 | 19 | 16 | 22 | 16 | 22 | 4000 | |
| 2,5/1 | 1,9 | 50 | 0,37 | 0,5 | 13 | 17 | 14 | 19 | 15 | 20 | 4000 | |
| Maksimum Giriş Gücü 16 kW | ||||||||||||

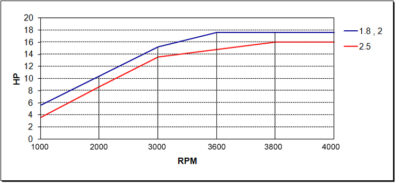

Heavy Duty
| RATIOS | MAX. TORQUE | POWER | MAX. POWER | MAX. RPM | ||||||||
| (A) Pos. | (B) Pos. | Nm | Kw | Hp | Kw | Hp | Kw | Hp | Kw | Hp | ||
| 3000 rpm | 3600 rpm | 3800 rpm | ||||||||||
| 1,8/1, 2/1 | 1,9 | 44 | 0,35 | 0,5 | 11 | 15 | 13 | 18 | 13 | 18 | 4000 | |
| 2,5/1 | 1,9 | 40 | 0,30 | 0,4 | 10 | 14 | 11 | 15 | 12 | 16 | 4000 | |
| Max Input Power : 13 kW | ||||||||||||
