M60
Mechanical Marine Gearbox Vertical Reduction
Maximum Power: 63 Hp (47 Kw)
Reverse reduction marine transmission with mechanically actuated multi-disc clutches.
Suitable for high performance applications and pleasure duty conditions in fishing and tour boats.
Soft gear lever which provides controlling facility with spiral.
Fully works tested, reliable and simple to install.
In case of proper usage according to safety usage conditions, proper engine, shaft, propeller selection and errorless assembling occured has 2 years warranty.
Design and manufacturing activities of all BAYSAN’s products comply with ISO 9001:2008.
Technical Details
|
Maximum input power limit
|
Pleasure duty – 63 Hp (47Kw)
Heavy Duty – 50 Hp (37 Kw)
|
|
Maximum input rpm limit
|
4000 RPM.
|
|
Reduction ratio
|
Standard : forward 2,13:1, reverse 1,95:1 Optionel : forward 2,63:1
|
|
Oil type
|
ATF – Shell Donax Tx
|
|
Oil capacity
|
0,50 lt.
|
|
Weight without flange
|
17 kg.
|
|
Standard rotation
|
In gear lever position (A),(Ref.dimensions) engine shaft and the propeller rotate in opposite directions,in position (B) in the same directions.
|

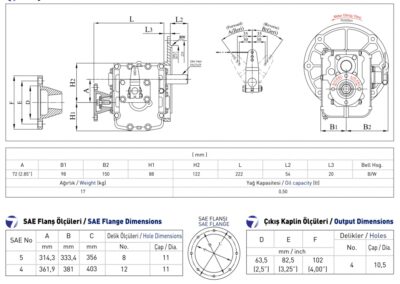

Dimensions

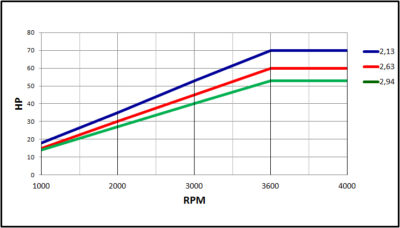

Pleasure Duty
| RATIOS | MAX. TORQUE | POWER | MAX. POWER | MAX. RPM | ||||||||
| (A) Pos. | (B) Pos. | Nm | Kw | Hp | Kw | Hp | Kw | Hp | Kw | Hp | ||
| 2800 rpm | 3000 rpm | 3600 rpm | ||||||||||
| 2,13 | 1,95 | 125 | 1,3 | 1,76 | 37 | 49 | 39 | 53 | 47 | 63 | 4000 | |
| 2,63 | 1,95 | 106 | 1,15 | 1,49 | 31 | 42 | 33 | 45 | 40 | 54 | 4000 | |
| 2,94 | 1,95 | 95 | 1,04 | 1,40 | 27 | 36 | 29 | 39 | 36 | 49 | 4000 | |
| Max Input Power 47 kW | ||||||||||||
